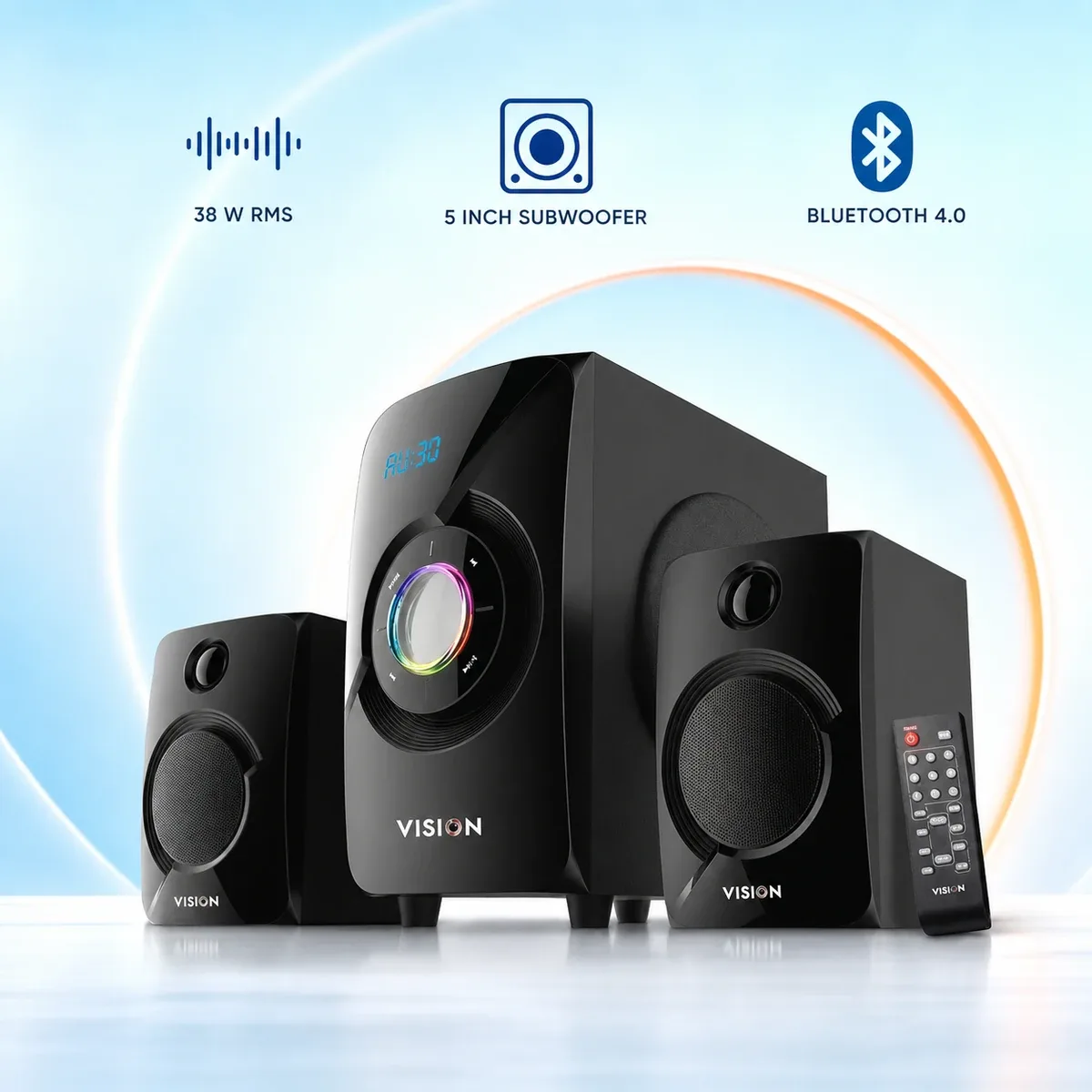

Vision 2:1 Multimedia Speaker Beat-102

The Vision 2:1 Multimedia Speaker Beat-102 is a three-piece home audio set rated at 38W RMS. A 5-inch subwoofer driver carries 15W of that output while two satellites with 3-inch drivers take 11.5W each, so bass and vocals come from separate cabinets instead of competing inside one box.

Sources connect four ways on this Beat-102 2:1 Multimedia Speaker: Bluetooth 4.0 for a phone or laptop, a USB/SD slot for stored music, a built-in FM radio, and a 3.5 mm audio jack fed by the supplied RCA stereo cable. The remote changes volume, track and input from across the room, and an LED display keeps time and the running program in view.

Frequency response runs from 20 Hz to 20 KHz, the signal-to-noise ratio is rated at 65 dB or better, and distortion stays at or below 0.5% measured at 1K and 1W. Three UTC2030 integrated circuits handle the amplifier stage. Seven colours of pulsating LED light play across the cabinet, which suits a TV corner or a small indoor gathering.

If you are comparing this Vision 38W Speaker with other TV or desktop sets, weigh subwoofer driver size, how the RMS rating is split between sub and satellites, and the input options. The subwoofer of this Beat-102 Bluetooth Speaker measures W160 × H273 × D245 mm and each satellite is W105 × H172 × D110 mm, with an overall size of 292 × 206 × 423 mm. Every Vision Beat-102 Multimedia Speaker box holds the subwoofer, two satellites, a 3.5 mm-RCA stereo cable, a remote, an FM antenna, an instruction manual and a warranty card.

Highlights

• 2:1 speaker set with one subwoofer and two satellites
• 38W total RMS output (15W subwoofer, 11.5W × 2 satellites)
• 5-inch subwoofer driver and 3-inch × 2 satellite drivers
• Frequency response of 20 Hz to 20 KHz
• Signal-to-noise ratio of 65 dB or better
• Distortion at or below 0.5% (1K, 1W)
• Three UTC2030 integrated circuits in the amplifier stage
• Bluetooth 4.0, USB/SD slot and built-in FM radio
• 3.5 mm audio jack with RCA stereo cable included
• Remote control plus LED display for time and program
• Seven-colour pulsating LED lighting
• Subwoofer W160 × H273 × D245 mm, satellites W105 × H172 × D110 mm

Warranty Information

1 Year Warranty

Important Usage Instructions

• Place the subwoofer on the floor near a wall and set the two satellites at ear level, roughly equally spaced from the listening position.
• Keep the volume below the point where the sound starts to break up; sustained clipping is the usual cause of blown drivers.
• Switch the set off and unplug it during load shedding or lightning, and avoid running it from an unstable power line.
• Pair one Bluetooth source at a time and disconnect the previous device before pairing a new phone or laptop.
• Keep the speaker grilles and the subwoofer port free of dust, and never place the cabinets in damp or direct-sun spots.

ব্যবহার ও যত্নের নির্দেশনা

• সাবউফার দেয়ালের কাছে মেঝেতে রাখুন এবং দুটি স্যাটেলাইট কানের উচ্চতায় সমান দূরত্বে বসান।
• যে ভলিউমে শব্দ ভাঙতে শুরু করে তার নিচে রাখুন — বেশি ভলিউমে টানা চালালে ড্রাইভার নষ্ট হয়।
• লোডশেডিং বা বজ্রপাতের সময় সুইচ বন্ধ করে প্লাগ খুলে রাখুন; অস্থির বিদ্যুতে চালাবেন না।
• একসাথে একটি ডিভাইসই Bluetooth-এ যুক্ত রাখুন; নতুন ফোন যুক্ত করার আগে আগেরটি ডিসকানেক্ট করুন।
• স্পিকার গ্রিল ও সাবউফারের পোর্ট ধুলামুক্ত রাখুন এবং ভেজা বা রোদ লাগে এমন জায়গায় রাখবেন না।

Beat-102 2:1 Multimedia Speaker কোথায় পাবেন?

১ বছরের official warranty সহ এই স্পিকার সেটটি পাবেন LM Electronics-এ। LM Electronics Vision-এর Official Dealer। সকল Sound System দেখতে ক্লিক করুন।
